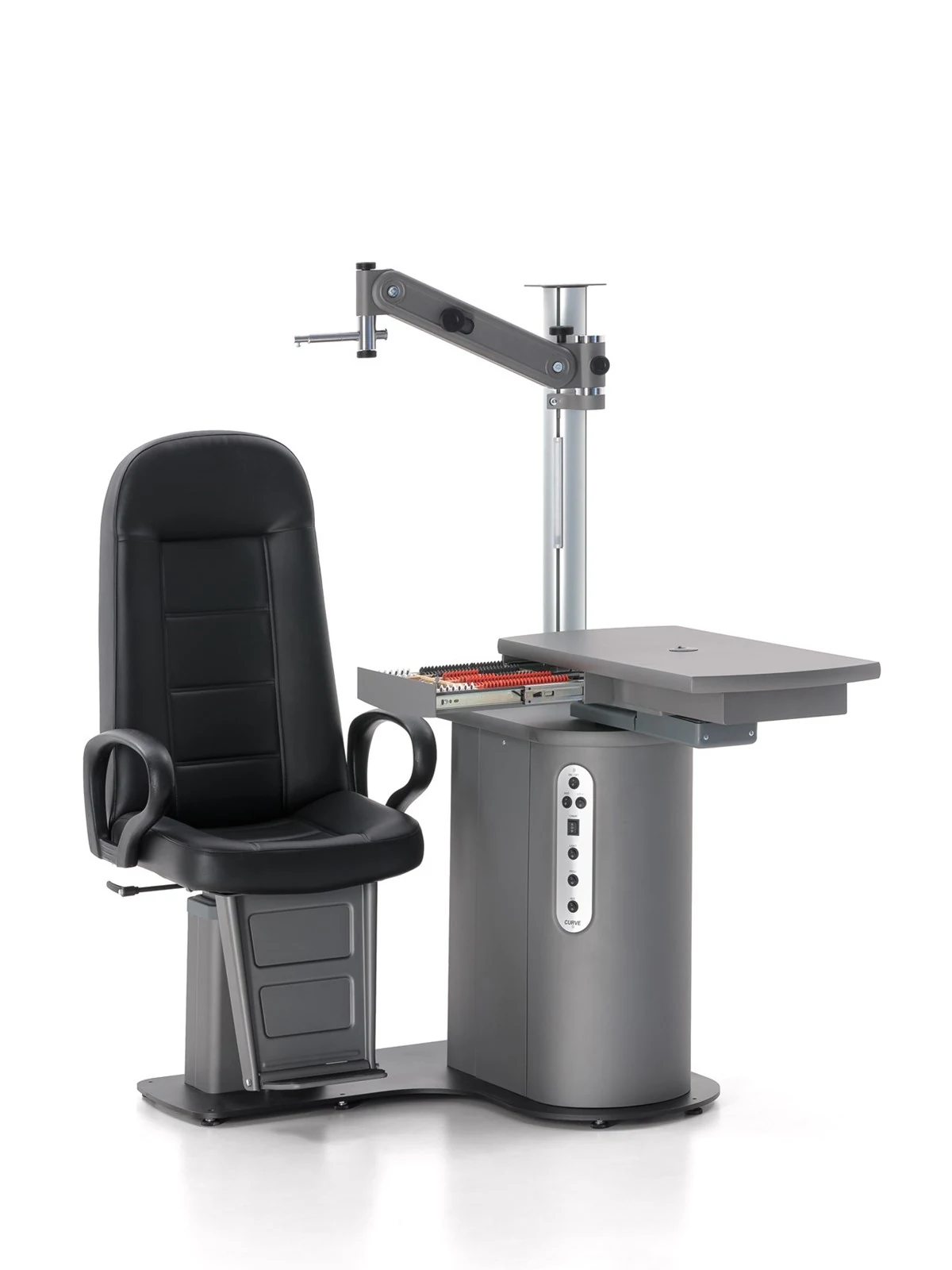

The manufacturer view shows the exact station configuration and access to instruments.
Position the worktop

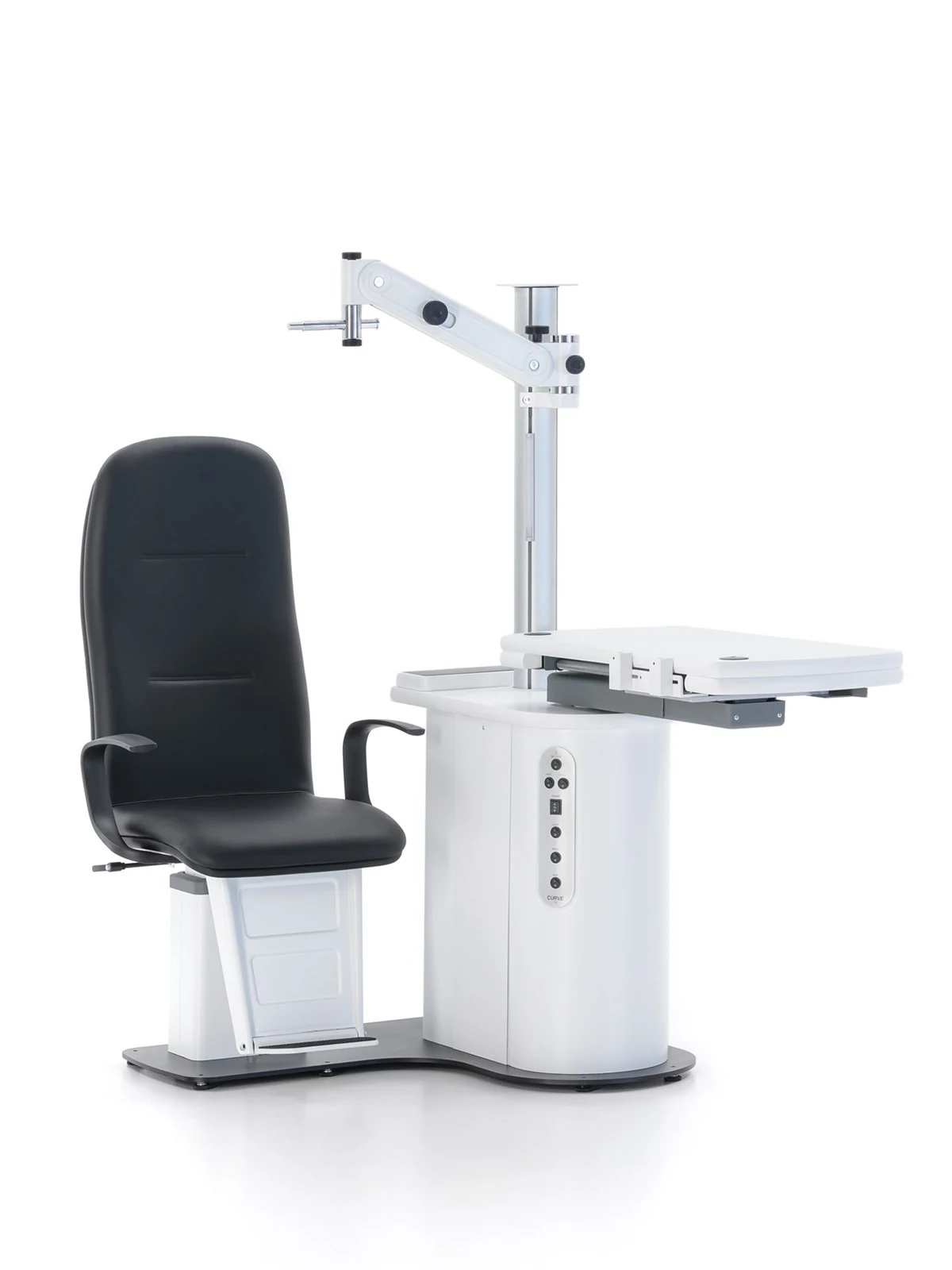

The documented worktop movement supports switching between instruments on Easyvisus Curve.
Plan the installation
The official diagram documents the footprint and supports Easyvisus Curve installation planning.
Documented product information

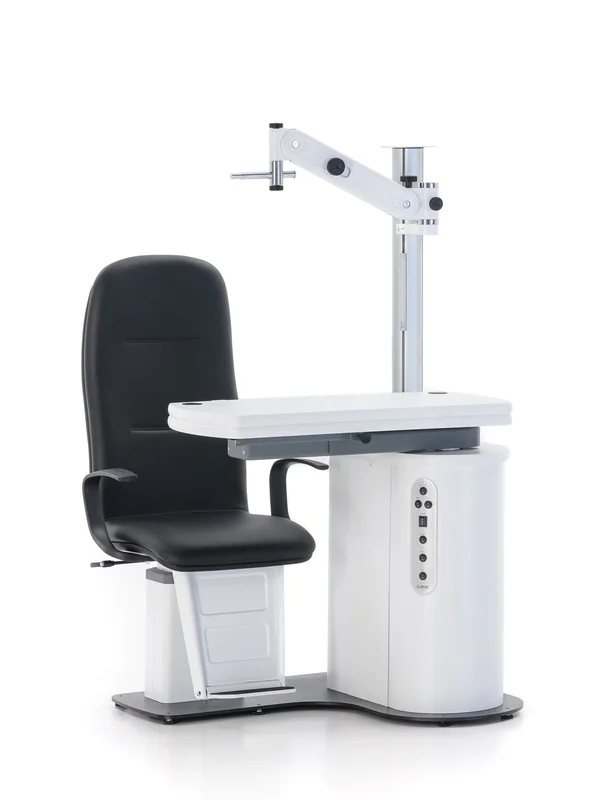

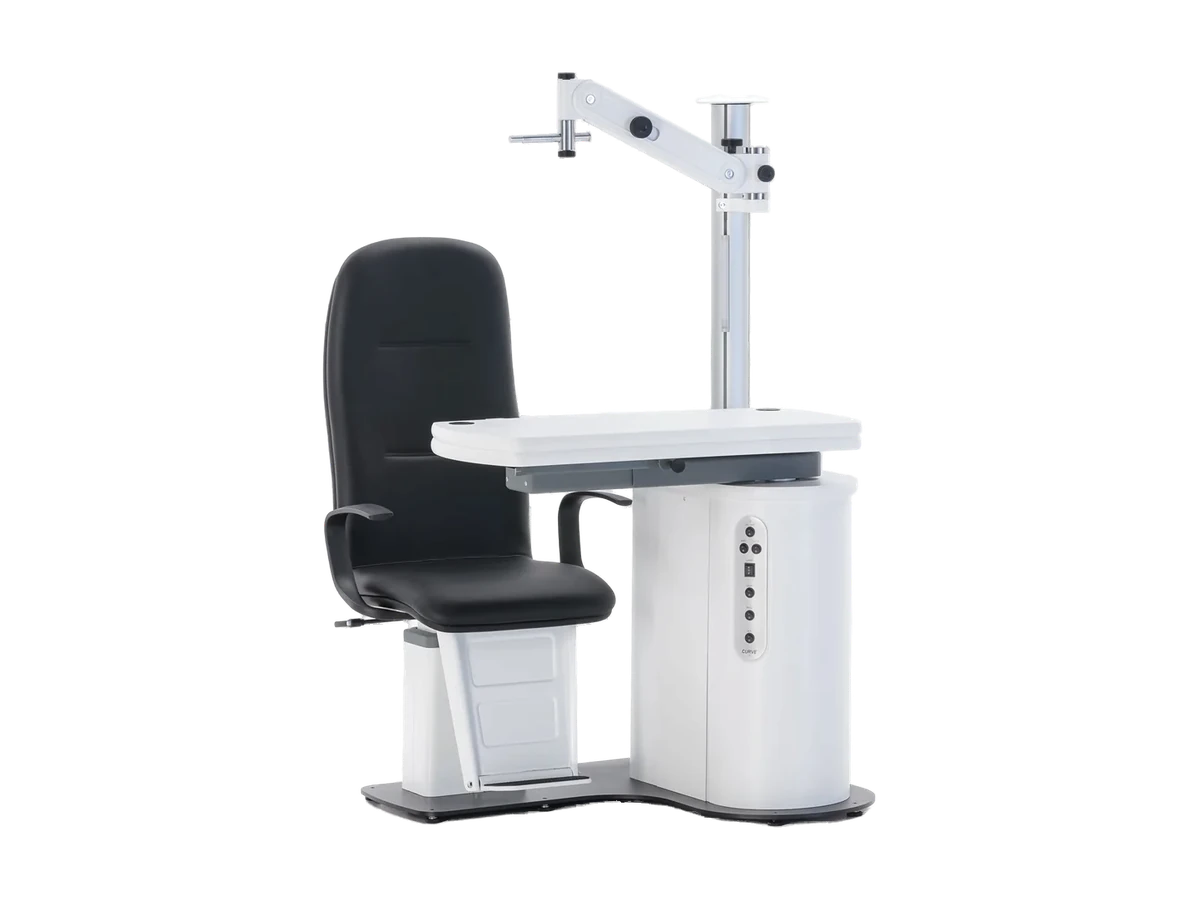

Easyvisus Curve is a two-instrument refraction unit with a fixed-height table. The table rotates or slides depending on the reference, with a drawer in one rotating configuration. Table and arm locking is electromagnetic. The PRIMA chair retains electric height adjustment independently of the fixed table; vertical table motorisation is not advertised.
A table for the selected instruments
400500 and 400530 are rotating references; 400530 includes a drawer. 400550 has a sliding table. These tables remain at fixed height, unlike the vertically motorised RM64 and MS33. The 400530 drawer can receive trial-lens accessories listed in the catalogue; the lens set and instruments must be specified separately.
Documented controls and positioning
The manufacturer documents electromagnetic locking of the rotating table and table arm. These pages do not describe an LCD panel or joystick equivalent to RM64 and MS33 units. Electric height adjustment applies to the standard PRIMA chair, not the table. A foot control for chair up/down movement is listed as an optional accessory.
Standard chair and optional accessories
The standard PRIMA has electric height adjustment and black skai upholstery without a footrest. A tip-up footrest, other coverings and replacement with another chair model are documented options. Chair versions must be confirmed in the ASEM quotation. Original photographs may show a footrest, phoropter arm or other optional accessories; visibility does not establish inclusion. Illustrated instruments and accessories must be identified separately.
Lighting and instrument power supply
The aluminium pole has an LED reading light and a chart projector support plate. Power supply for the slit-lamp transformer is documented inside the main unit. Adjustable ambient LED lighting is not added by analogy with RM64 and MS33. The base is painted steel with adjustable feet. These pages do not specify whole-unit supply voltage or frequency.
Installation and configuration choice
400500S, 400530S and 400550S are optional left-handed versions. Drawings show different rotating and sliding layouts; no adjustable table height or single overall dimension is inferred from them. Weight is not listed on these pages. Layout, operating side and accessories must be confirmed in the ASEM quotation.
The manufacturer view shows the exact station configuration and access to instruments.
Position the worktop
The documented worktop movement supports switching between instruments on Easyvisus Curve.
Plan the installation
The official diagram documents the footprint and supports Easyvisus Curve installation planning.
Documented product information
Easyvisus Curve is a two-instrument refraction unit with a fixed-height table. The table rotates or slides depending on the reference, with a drawer in one rotating configuration. Table and arm locking is electromagnetic. The PRIMA chair retains electric height adjustment independently of the fixed table; vertical table motorisation is not advertised.
A table for the selected instruments
400500 and 400530 are rotating references; 400530 includes a drawer. 400550 has a sliding table. These tables remain at fixed height, unlike the vertically motorised RM64 and MS33. The 400530 drawer can receive trial-lens accessories listed in the catalogue; the lens set and instruments must be specified separately.
Documented controls and positioning
The manufacturer documents electromagnetic locking of the rotating table and table arm. These pages do not describe an LCD panel or joystick equivalent to RM64 and MS33 units. Electric height adjustment applies to the standard PRIMA chair, not the table. A foot control for chair up/down movement is listed as an optional accessory.
Standard chair and optional accessories
The standard PRIMA has electric height adjustment and black skai upholstery without a footrest. A tip-up footrest, other coverings and replacement with another chair model are documented options. Chair versions must be confirmed in the ASEM quotation. Original photographs may show a footrest, phoropter arm or other optional accessories; visibility does not establish inclusion. Illustrated instruments and accessories must be identified separately.
Lighting and instrument power supply
The aluminium pole has an LED reading light and a chart projector support plate. Power supply for the slit-lamp transformer is documented inside the main unit. Adjustable ambient LED lighting is not added by analogy with RM64 and MS33. The base is painted steel with adjustable feet. These pages do not specify whole-unit supply voltage or frequency.
Installation and configuration choice
400500S, 400530S and 400550S are optional left-handed versions. Drawings show different rotating and sliding layouts; no adjustable table height or single overall dimension is inferred from them. Weight is not listed on these pages. Layout, operating side and accessories must be confirmed in the ASEM quotation.
