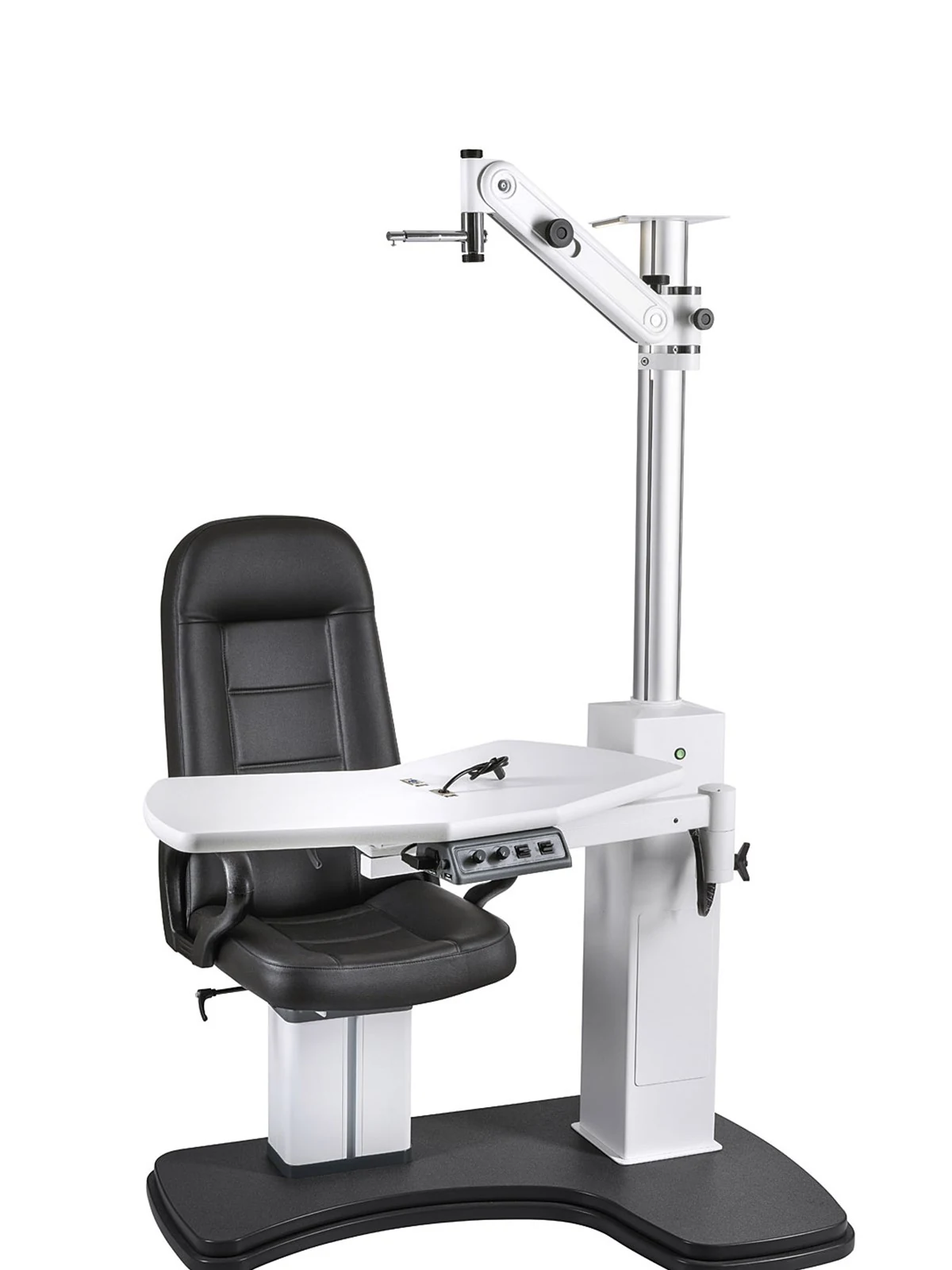

The official Easyvisus Two configuration brings two instruments together on a compact station.
Prepare the space
The dimensioned drawing supports planning of the footprint and worktop movement.
Choose the finish

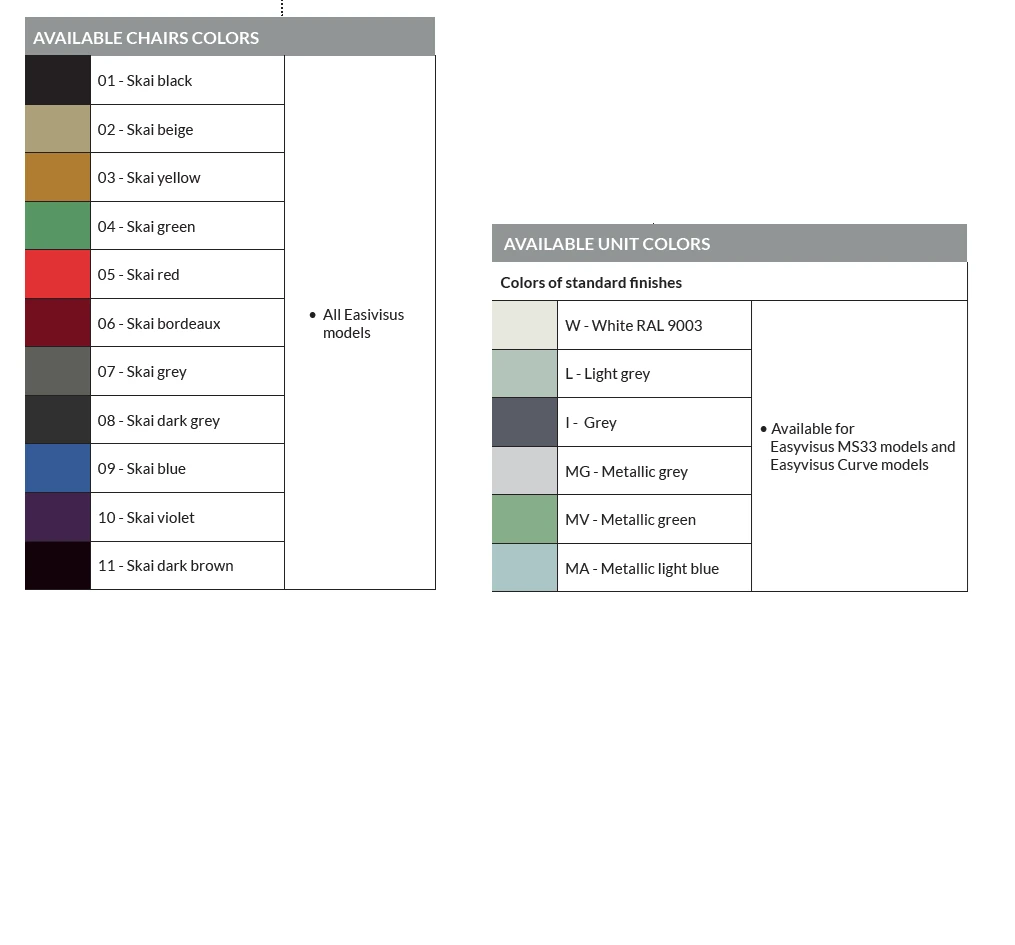

The manufacturer palette documents available finishes for integrating the station into the practice.
Documented product information

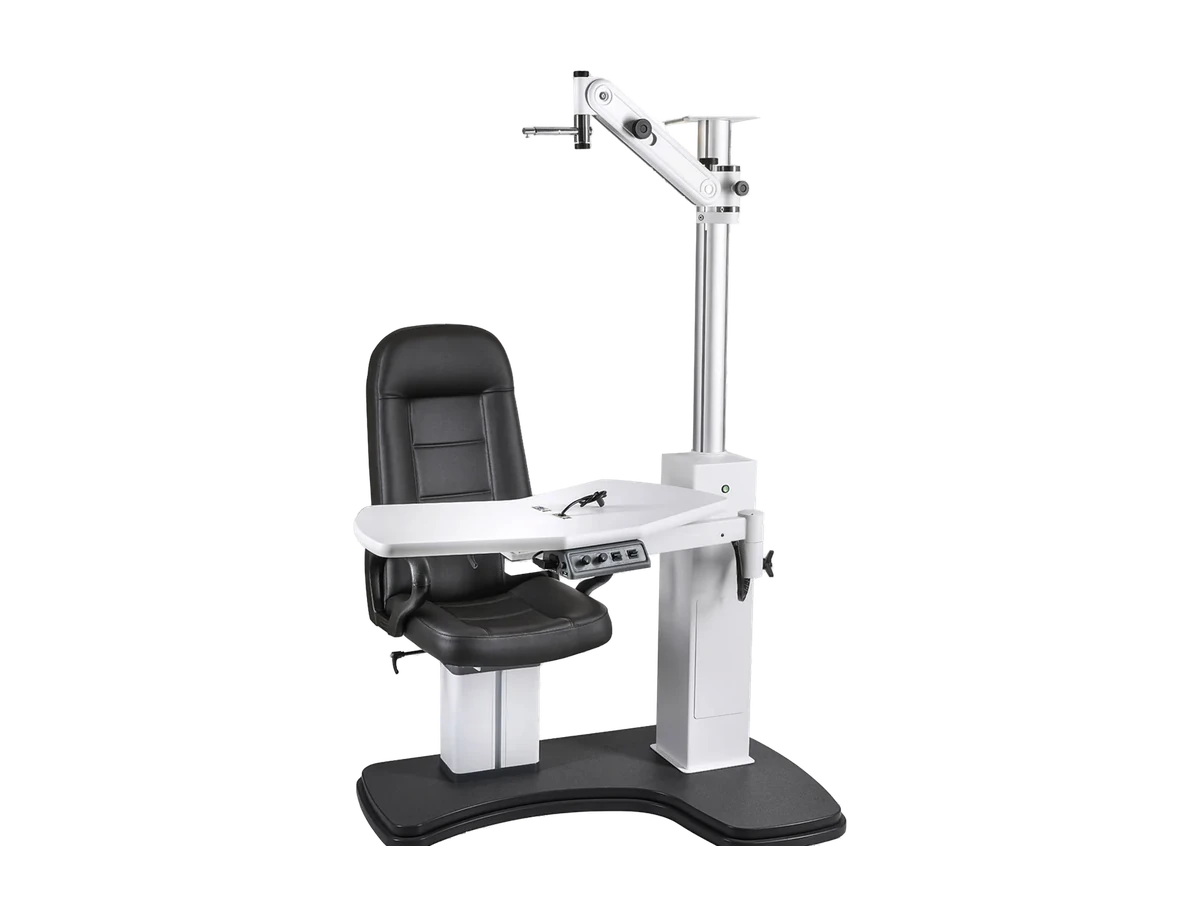

Easyvisus Two is a refraction unit with a fixed-height V-shaped table for two instruments. A dedicated mechanism centres the instruments, and the table arm locks mechanically. The electrically height-adjustable PRIMA chair, LED reading light and foldaway dust-protected drawer are documented standard features. The fixed table must not be described as vertically motorised.
A table for the selected instruments
Standard reference 400102 has a fixed-height V-shaped table for two instruments with a dedicated centring mechanism. The manufacturer does not describe an electrically height-adjustable rotating or sliding table here. The foldaway dust-protected drawer is intended for an ophthalmoscope and skiascope; these instruments are not assumed to be included. Left-handed 400102S is optional.
Documented controls and positioning
The table arm locks mechanically in all positions. This differs from the electromagnetic locking of Curve, RM64 and MS33 units. Electric height adjustment belongs to the standard PRIMA chair, not the V-shaped tabletop. Instrument centring must suit the devices selected in the ASEM quotation. Chair foot control is listed as an optional accessory.
Standard chair and optional accessories
The standard PRIMA has electric height adjustment and black skai upholstery without a footrest. A tip-up footrest, other coverings and replacement with another chair model are documented options. Chair versions must be confirmed in the ASEM quotation. Original photographs may show a footrest, phoropter arm or other optional accessories; visibility does not establish inclusion. Illustrated instruments and accessories must be identified separately.
Lighting and instrument power supply
A transformer for instrument power supply is documented. The aluminium pole has an LED reading light and a chart projector support plate. The brochure does not give complete-unit input voltage or frequency here; the 230 V instrument supply documented for One is therefore not copied to Two. Powered instruments and their requirements must be confirmed with ASEM.
Installation and configuration choice
The drawing is specific to reference 400102 and shows separate layout measurements. They are not merged into overall dimensions, adjustable height or motorised travel. Weight is not given on these pages. Right- or left-handed layout, clearances, chair and accessories must be specified for the practice. A phoropter arm or footrest visible in a photograph is not advertised as included by default.
